DELLA-Wall Washer

The Della downlight series offers a complete line of high performance LED luminaires that provide outstandingfunctionalitty and quality.The series features ultra mini 1.25" size, high performance standardand uniform floorto ceiling wall washing.Multiple power level options and a full line of round and square,trimmed and trimlessluminaires offer versatile solutions for various lighting applications. Easytoinstall,andservice.
Parameter
No parameter data available.
13800000000
Order now
产品详情产品参数











The Della downlight series offers a complete line of high performance LED luminaires that provide outstandingfunctionalitty and quality.The series features ultra mini 1.25" size, high performance standardand uniform floorto   ceiling wall washing.Multiple power level options and a full line of round and square,trimmed and trimlessluminaires offer versatile solutions for various lighting applications. Easytoinstall,andservice.

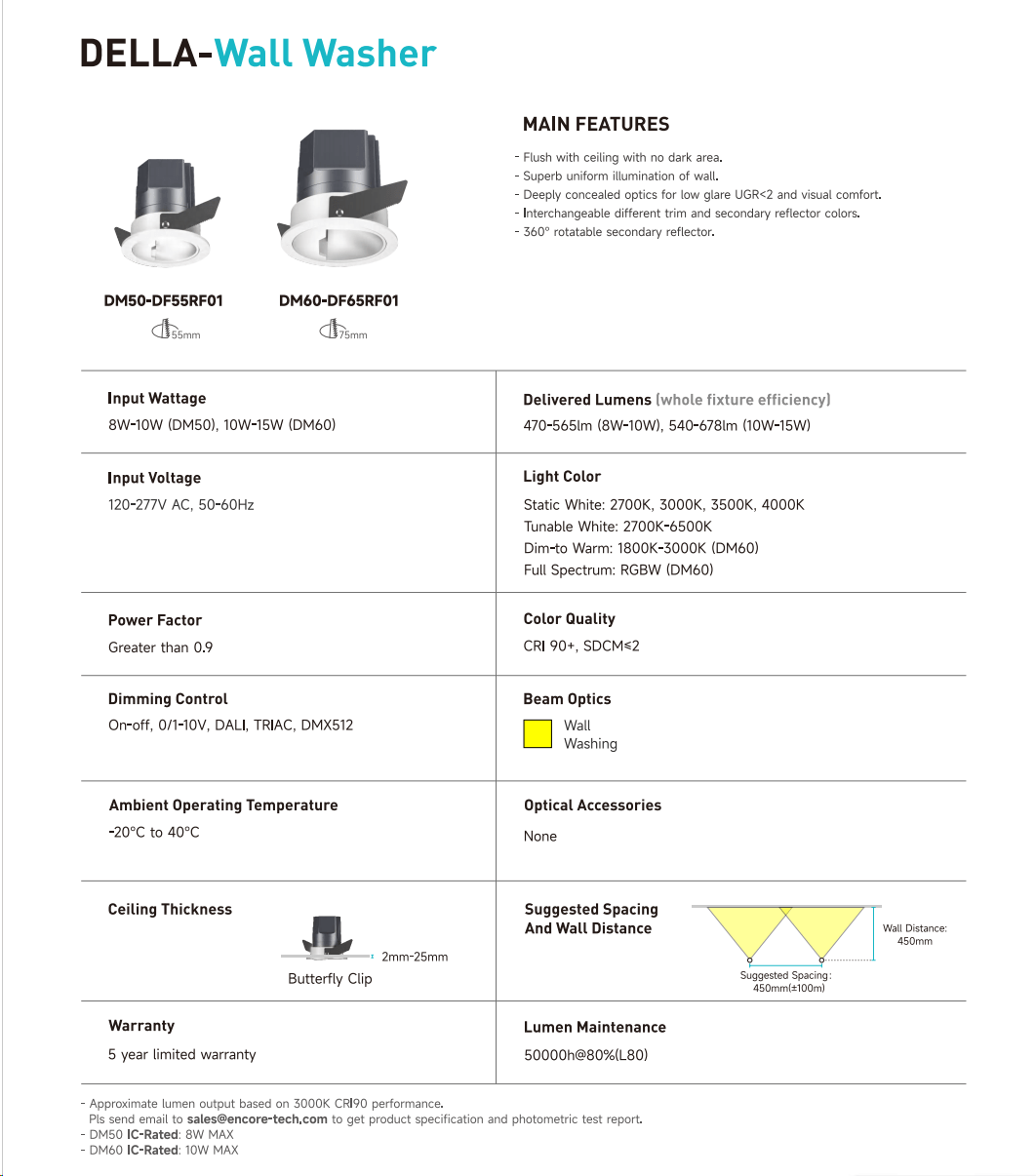

Product Information Sheet

Input Wattage8W-10W (DM50), 10W-15W(DM60)
Input Voltage120-277V AC, 50-60Hz
Power FactorGreater than 0.9
Dimming ControlOn-off, 0-10V, DALI, TRIAC, DMX512
Ambient Operating Temperature-20°C to 40°C
Ceiling ThicknessButterfly Clip: 2mm-50mm
Warranty5 year limited warranty
Delivered Lumens (whole fixture efficiency)470-650lm (8W-10W DM50), 540-680lm (10W-15W DM60)
Light ColorStatic White: 2700K, 3000K, 3500K, 4000K
Tunable White: 2700K-5500K
Dim-to-Warm: 1800K-2000K (DM50)
Full Spectrum RGBW (DM60)
Color QualityCRI 90+, SDCM≤2
Beam OpticsWall Washing
Optical AccessoriesNone
Suggested Spacing (Wall Washer Distance)Wall Distance: 400mm
Suggested Spacing (Recessed Soffit): 800mm
Lumen Maintenance50000hrs@80%(L80)
Additional Notes-Approximate lumen output based on CIE S009 performance.
-Product performance may vary, refer to product specification and photometric test report.
-DM50-IC Rated: 10W MAX
-DM60-IC Rated: 15W MAX


MAIN FEATURES

  • Flush with ceiling with no dark areas.

  • Smooth and comfortable illumination.

  • Deeply recessed louver for low UGR<19 and visual comfort.

  • Secondary reflector with interchangeable reflector closure.

  • 360° rotatable secondary reflector.
