DELLA-Mini

The Della downlight series offers a complete line of high performance LED luminaires that provide outstanding functionality and quality.
The series features ultra mini 1.25* size, high performance standard an d uniform floor to ceiling wall washing. Multiple power level options and a full line of round and square, trimmed and trimless luminaires offer versatile solutions for various lighting applications.
Easy to install, and service.
Parameter
No parameter data available.
13800000000
Order now
产品详情产品参数










The Della downlight series offers a complete line of high performance LED luminaires that provide outstanding functionality and quality.

The series features ultra mini 1.25* size, high performance standard an d uniform floor to ceiling wall washing. Multiple power level options and a full line of round and square, trimmed and trimless luminaires offer versatile solutions for various lighting applications.

Easy to install, and service.

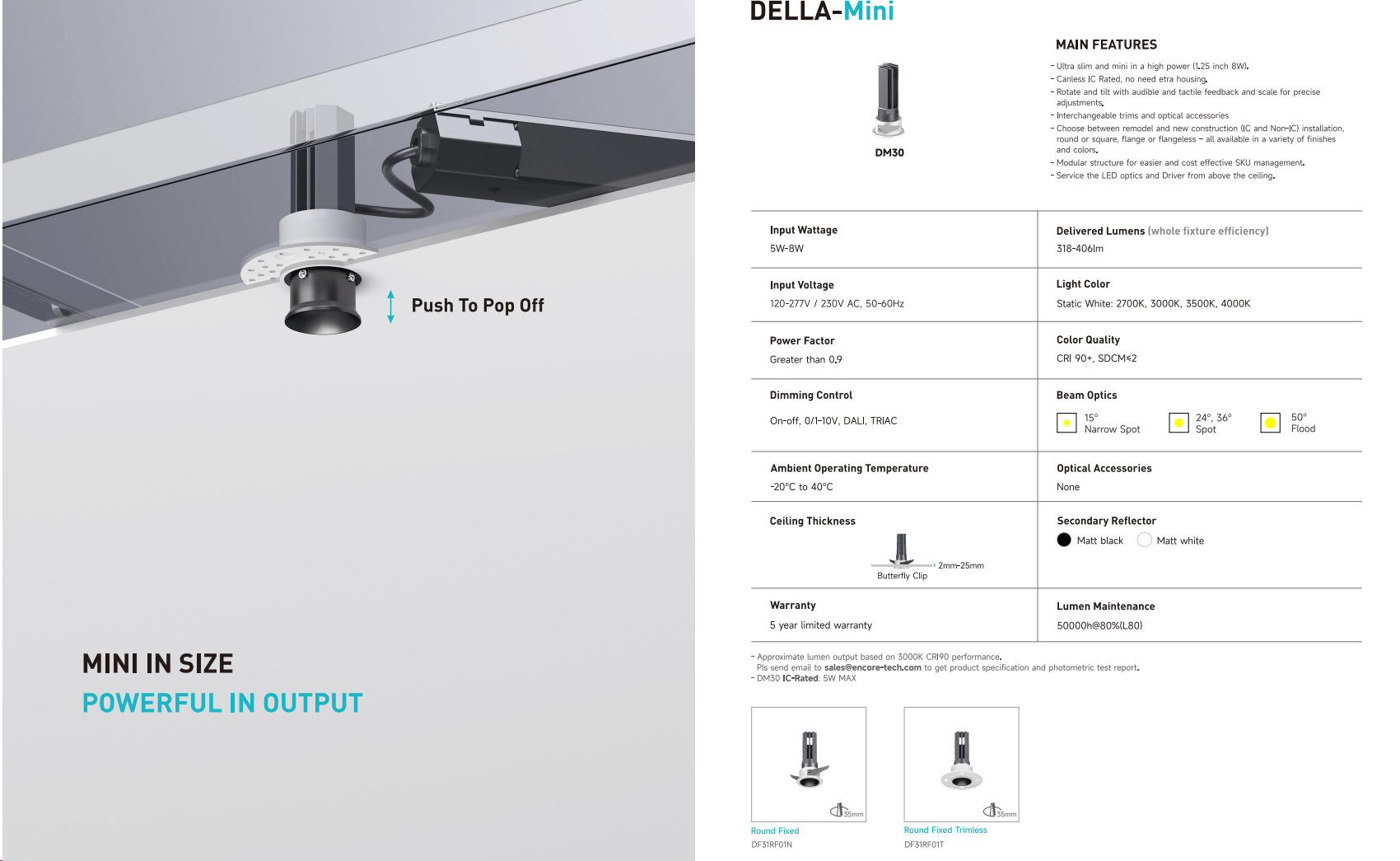

Product Information Sheet


NameDELLA-Mini（型号：DM30）
Input Wattage5W-8W
Input Voltage100-277V / 230V AC, 50-60Hz
Power FactorGreater than 0.9
Dimming ControlOn-off, 0-10V, DALI, TRIAC
Ambient Operating Temperature-20°C to 40°C
Ceiling Thickness2mm-25mm（Butterfly Clip）
Warranty5 year limited warranty
Delivered Lumens (whole fixture efficiency)318-400m
Light ColorStatic White: 2700K, 3000K, 3500K, 4000K
Color QualityCRI 90+, SDCM≤2
Beam Optics15°（Narrow Spot）、24°（Spot）、36°/50°（Flood）
Optical AccessoriesNone
Secondary ReflectorMatt black / Matt white
Lumen Maintenance50000hrs@80%(L80/B50)
NotesApproximate lumen output based on 5000K CRI90 performance；For exact lumen output: contact sales for spec/photometric report；D-MINI IC-Rated, 8W MAX
TrimsRound Fixed（DS-STHN-W）；Round Fixed Trimless（DS-STHT-W）

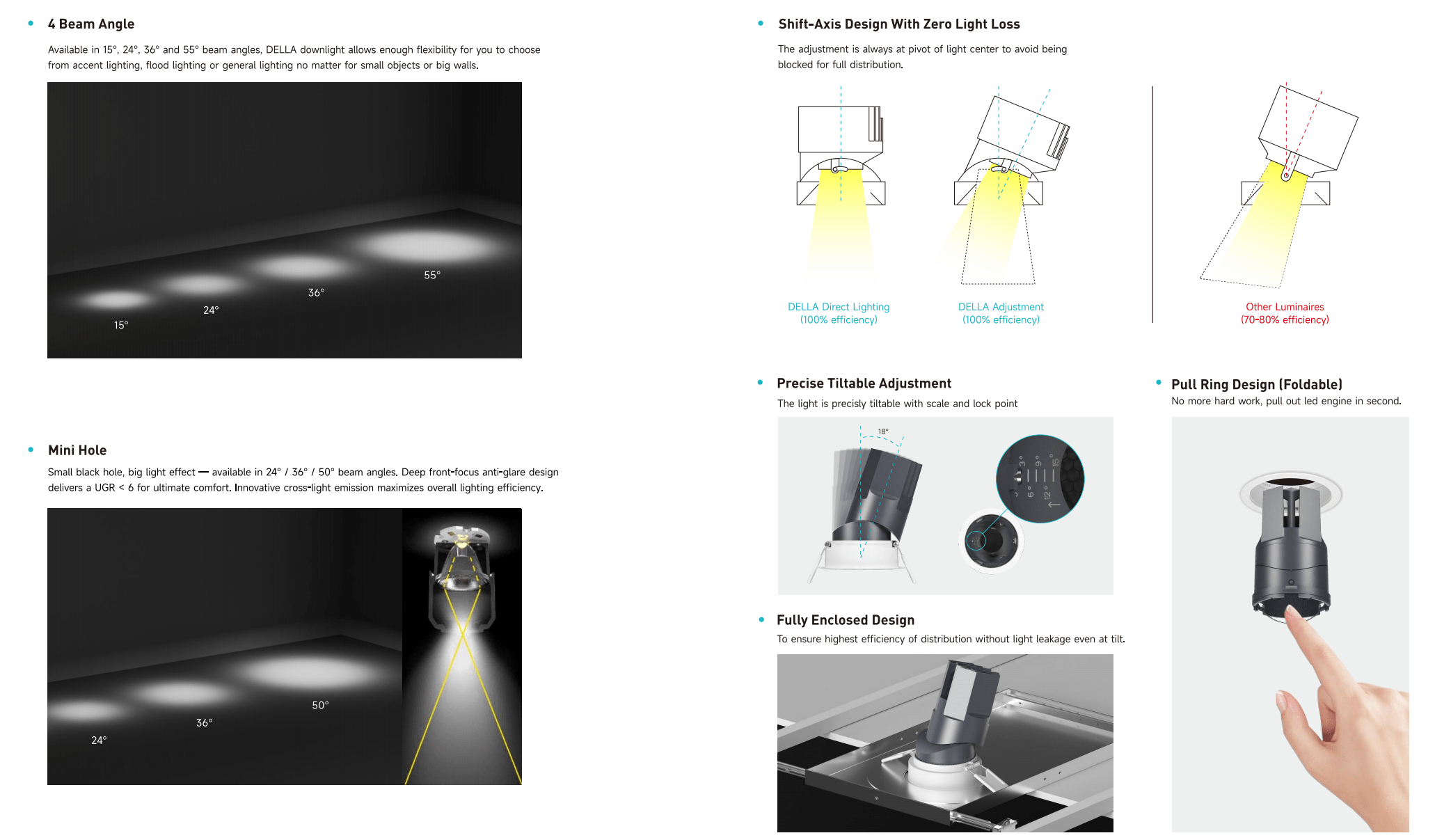

MAIN FEATURES

  • Ultra slim and mini, in high power (25 lbs BWL).

  • Ceiling Recessed, no need extra housing.

  • Secondary reflector with audible and tactile feedback and scale for precise adjustment.

  • Available in black or white.

  • Interchangeable trims and optical accessories.

  • Choose between remodel or new construction (IC and Non-IC) installation.

  • Available in 5W, 7W, 8W. The product is in a newly finished and modern design with 4 different light color temperatures.

  • Modular structure for easier and cost effective SKU management.

  • Service the LED optics and Driver from above the ceiling.
