DELLA

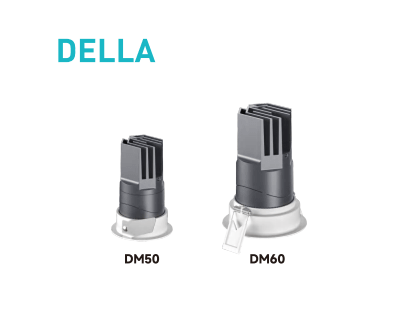

The Della downlight series offers a complete line of high performance LED luminaires that provide outstandingfunctionality and quality.The series features ultra mini 1.25" size, high performance standard and uniform

floor-to-

ceiling wall washing. Multiple power level options and a full line of round and square, trimmed and trirmless luminaires offer versatile solutions for various lighting applications.Easy to install,and service.

​
Parameter
No parameter data available.
13800000000
Order now
产品详情产品参数










The Della downlight series offers a complete line of high performance LED luminaires that provide outstandingfunctionality and quality.The series features ultra mini 1.25" size, high performance standard and uniform floor-to-

ceiling wall washing. Multiple power level options and a full line of round and square, trimmed and trirmless luminaires offer versatile solutions for various lighting applications.Easy to install,and service.



Product Information Sheet

Input Wattage6-8W (DM50), 10W-15W(DM60)
Input Voltage120-277V / 230V AC, 50-60Hz
Power FactorGreater than 0.9
Dimming ControlOn-off, 0-10V, DALI, TRIAC, DMX512
Ambient Operating Temperature-20°C to 40°C
Ceiling ThicknessClips: 25mm-50mm; Spring clip: 1mm-20mm
Warranty5 year limited warranty
Delivered Lumens (whole fixture efficiency)450-650lm (6W-8W), 620-925lm (10W-15W)
Light ColorStatic White: 2700K, 3000K, 3500K, 4000K
Dimmable White: 2700K-6500K
Full Spectrum RGBW (DM60)
Color QualityCRI 90+, SDCM≤2
Beam Optics15° Nano Spot, 24° Spot, 36° Spot, 55° Flood
Optical AccessoriesHoneycomb, Soft lens
Secondary ReflectorMatt black, Matt white, Matt silver
Lumen Maintenance50000hrs@80%(L80)
Additional Notes-Approximate lumen budget based on CIE S009 performance.
-Product performance may vary, refer to product specification and photometric test report.
-DM50-IC Rated: 8W MAX
-DM60-IC Rated: 15W MAX


MAIN FEATURES

  • Cast-IC dielectric heat housing.

  • 100% rotation, no need to be locked at any angle.

  • Segmented shift-and-tilt with optical lock and scale for precise aiming.

  • Integrateable with trim and accessories.

  • Choose between remodel and new construction IC and Non-IC installation.

  • Removable and washable trim ring.

  • Dimmable, Dim to Warm, and Effects RGBW color options.

  • Modular structure for seamless scalable LED management.

  • Service the LED optics and Driver from above the ceiling.
